Archive for the ‘Ice Dam Heat Tape’ Category


Eave Construction and Ice Dams

Tuesday, March 28th, 2017

How Does Eave Style and Construction Method Affect Ice Dam Formation and Severity?

Eave Construction and Heat Transfer

We have discussed the relationship between eave depth and ice dams previously (Case Study #10). Now let’s look into how different construction methodologies affect the likelihood and severity of ice dams in residential and light commercial construction.

For obvious reasons, eaves are a central topic in the world of ice dams. After all, that’s where 98% of ice dams occur, with the other slice of happening in areas including valleys, flat roofs and low pitch roof pans. There is a reason why older homes are affected more by ice dams then newer homes. That relates primarily to the nature of how the eaves are assembled.

Our grandparents didn’t understand the importance of insulation and ventilation as it relates to the eave. (They were busy thinking about wars and famine). In short, there needs to be enough room between the top plate of the wall and the underside of the roof decking to allow for adequate insulation and ventilation. We know that ice dams are created in large part by the escape of heat from the interior, conditioned spaces of a home into areas where that heat is not supposed to be. Namely, it is not supposed to be in the roof cavity next to the roof deck. Homes with less insulation near the eaves are troubled with ice dams far more than those with adequate insulation and ventilation. In Diagram B, we see an example of common eave construction in modern homes. Notice that the distance between the top plate and the roof deck is quite generous. This is commonly referred to as the heel height. In Diagram A, which shows a hand-framed eave, there is virtually no space for insulation or ventilation. Consequently, heat can easily pass from the room below to the roof system, melting the snow above.

Case Study 14 Case Study 14.2

Don’t despair if you have old school eaves. There are options to help prevent or at least minimize the likelihood of ice dam problems in the future. Those can be broken down into two broad categories; Architectural and non-Architectural Solutions. In short, Architectural solutions involve modifications to the thermal performance of the home, including insulation, ventilation and, most importantly, sealing air-leaks into the attic or roof truss cavities. The most effective Non-Architectural solution is simple, cheap and effective. Install a high-quality, self-regulating heat tape system on affected areas.

Ask any experienced residential designer, classic architectural styles are difficult to execute with adequate heel heights. Talented designers can pull it off, but they need to think outside the box. High-end, architecturally refined homes don’t look right with clunky, new construction eaves.



To read more Case Studies click here.


Professional Roofers + Ice Dam Removal = Good News

Saturday, February 11th, 2017

Here is why it makes sense to hire professional roofers to remove your ice dams. It’s true. Most of our competitors are not roofers, nor do they understand residential construction.

Ice dam company professional roofers, professional results

Today one of our guys found a massive install error on a low-pitch rolled asphalt roof in Minneapolis. The client had no idea, and nor would any of our competitors who are not construction pros. The original roof installer failed to use adhesive between the roofing plies! (Photo 3, Point E) and no ice and water membrane whatsoever (Photo 3, Point F). That’s a major no-no. They also had all of the penetrations negatively lapped (sequenced into the asphalt improperly) (Photo 4, Point D). Good catch Paul!

The client with the roof leak in Minneapolis illustrated here called due to water pouring in through a light fixture under Point A, Photo 1. This by itself is not unusual. Roof leaks caused by ice dams often manifest many feet away from the source; sometimes a full story or two below the source. My initial theory was that water was traveling down the exterior wall of the shed dormer shown in Photo A. As it turns out, there was something more pernicious happening. The water was being pushed under an improperly flashed plumbing stack (Photo 2, Point B). While exploring the area our crews also noted the lack of lap sealant between the roofing plies (Photo 2, Point B and Photo 3, Point E).

This homeowner had used one of our largest competitors in town in 2014 to remove an ice dam (see highest ranking Google result). Guess what? They said nothing about the roofing defect. No big surprise because frankly, how would they know? They aren’t construction professionals, just ice dam removal guys who squirt ice off roofs with high-temperature pressure washers (not steamers!) (Click here to see the difference). We have seen this exact scenario play out countless times and to be honest, it’s frustrating to watch.

Ice dam company finds roof leaks

The Ice Dam Company is in fact the only company in the country with the in-house chops to diagnose and address problems with insulation, ventilation, roofing, sheet metal and other exterior envelope components. We also install miles of self-regulating heat cable each year on homes where the aforementioned architectural solutions are not appropriate or feasible. Most ice dam removal guys just use their pressure washers to squirt ice off the roof and that’s the end of it. For us, ice dam removal projects are often just the beginning of a longterm relationship with our clients. We end up remodeling their kitchen or adding onto their house through our sister company Kuhl Design + Build, a nationally recognized, award winning remodeling firm. The Ice Dam Company is a division of Kuhl’s Contracting, the third largest residential construction and remodeling company in Minnesota. There is a huge amount of cross-pollenization between the organizations. Each benefits from the resources and talents of the other. It’s fun to witness.

Ice dam company fixes roof leaks caused by ice dams and construction defects


Ice Dam Prevention: Two Approaches

Tuesday, February 7th, 2017

How to Prevent Ice Dams on Your Home – Answers from the Experts

Overview

To be frank, the entire concept of ice dam prevention is a little bit disingenuous. There are certain circumstances where even the most well constructed, well insulated and ventilated roof system will get ice dams. Those situations are rare, but they do occur. When we talk about ‘prevention’, what we are realistically discussing is the field of work aimed at either reducing the likelihood of ice dams or minimizing the impact of ice dams if they do occur.



Two Approaches to Ice Dam Prevention:

We break ice dam prevention into two broad categories; Architectural and Non-Architectural. Architectural solutions involve modifications to the existing structure to alter the problematic thermal characteristics that are contributing causes of ice dams. In contrast, Non-Architectural solutions are comprised of the work done to minimize the impact of unwanted roof and gutter ice accumulations when they are likely to begin.

Architectural Approach

It’s seldom the case that a single home medication, once implemented, will permanently fix an ice dam problem. More often than not ice dam prevention involves a combination of changes in order to have a significant impact.

A very standard ice dam prevention project for The Ice Dam Company might involve enhancing or replacing the insulation in the attic or roof system, adding ventilation and sealing all of the air-leaks between the heated spaces and the attic and roof framing. Usually, this combination of endeavors yields good results. Sometimes it is necessary to alter the roofing system itself. Normally, this means installing a single ply roof system such as hand-soldered copper pans or a rubber membrane. Single ply roof systems are quite resilient in the face of ice dams but they will to work in all areas due to aesthetics. We will dig further into each of the three basic architectural solutions in other Case Studies.

Certain ice dam creation factors cannot be addressed through Architectural solutions such as insulation, ventilation, air-sealing or roof system enhancements. Case Study #19 discusses the relationship between the sun and ice dams. We recently installed heat tape on a 6 year old, $3.8 million dollar home. The homeowner had spared no expense relative to energy efficiency in the original design and construction. That was not the issue. The problem was simply that the sun was melting the snow on an exposed roof plane higher on the home which resulted in melt water running down to a cold eave area that was hidden from the sun. There it would re-freeze in cycles to create an ice dam that kept coming back year after year.



Non-Architectural Approach

In terms of ice dam prevention, there is a small set of options available that fall outside of the Architectural solutions. These involve systems to manage snow and ice accumulations as they develop on a roof. The most popular Non-Architectural ice dam solution is heat cables. Otherwise known as heat tape and roof deicing, heat cables are wires that warm up in response to electrical current. Typically, heat cables are installed in a serpentine or zig-zag pattern on a roof along the eaves. To be clear, heat cables do not resolve the underlying issues related to why ice dams are happening rather they help manage the issue of unwanted ice accumulations when the conditions are ripe for their formation. A common complaint about heat tape is that it does not address the real issues causing the ice dams. This complaint is justified because it is true. That said, heat cable systems can be installed on a home for a fraction of the cost of traditional Architectural solutions. Many homeowners are not in the position to spend $5,000 to $25,000 for Architectural ice dam solutions making the idea of a $1,000 heat cable system very appealing. We do both approaches every day.

We would be remiss in not mentioning the very most basic thing you can do to minimize the likelihood of ice dams; Roof shoveling. Diligently removing the snow from your roof can greatly reduce the likelihood of ice dams. Unfortunately, some roofs are too high or have areas inaccessible to the average homeowner, making roof snow removal an ineffective approach to guaranteed ice dam prevention. Removing all of the snow from the roof planes affected by the ice dams is very important. See the Ice Dam Company Case Study #3 that discusses a phenomenon called the ‘Double Dam’.



To read more Case Studies click here.


Icicles and Ice Dams

Friday, February 3rd, 2017

The Relationship Between Ice Dams and Icicles

Do Icicles Mean Ice Dams?

You may notice that the home shown below has some icicles (sarcasm intended). Obviously, when something like this occurs, it is quite likely that you have ice dams as well as a giant insurance claim from the subsequent water damage it has caused. The fact is, the vast majority of the ice dam steaming projects we complete are not on homes with monster icicles. When we arrive we often see quite modest icicles from the ground. The relationship between icicles and ice dams is not difficult to understand when you study the problem for awhile. This Case Study digs into the topic of icicles and ice dam life cycles.

Case Study 20

Do icicles mean ice dams? The short answer is NO. While icicles on the edge of the roof are often a precursor to ice dams, they are not always present when ice dams begin to cause leaks through a roof system. Ice dams and icicles are part of the same accumulation but they are not the same thing by any means. This brings us to the normal life cycle of an ice dam.

The characteristics of ice dams change over time. The typical lifespan of an ice dam rangers from a few days to a few weeks. During that time it may get thicker or thinner, icicles may appear and disappear on its’ leading edge, and it may be almost completely hidden under snow or partially or completely exposed. For this reason, there is a big different between a young ice dam and an old ice dam in terms of the presence of icicles. Very young ice dams often have visible icicles on their leading edge. Over the following days most ice dams tend to grow more in depth than thickness, meaning the ice migrates higher up on the roof plane (refer to Case Study #06 for more information). Icicles on more mature ice dams tend to melt away from the affects of direct sunlight or warmer outdoor temperatures. However, while the telltale icicles may be missing, the mass of the ice dam is left behind, frequently hidden under a blanket of snow.

Case Study 20.2

Case Study 20.3

The photos above (A) and (B) demonstrate this phenomenon on two St. Louis Park homes. Virtually no traditional signs of an ice dam and yet you see water leaking down the exterior wall, through the siding and in the wall cavity itself. Bad news.

Case Study #16 examines the important topic of ice migration, from icicles to the interior of your home.



To read more Case Studies click here.


Ice Dam Removal and Heat Cable Installation Package

Monday, December 26th, 2016

We are the only company in the Twin Cities that regularly installs heat cables directly after steaming ice dams off the roof. We have it down to a science. In fact, installing heat cables immediately after roof ice dam steaming is a great idea because our clients prevent same-season call backs for additional ice dam removal. Speaking of science, did you know that we are a direct-to-consumer manufacturer of heat cable? It’s true and we sell it to home owners and installers all over the country.

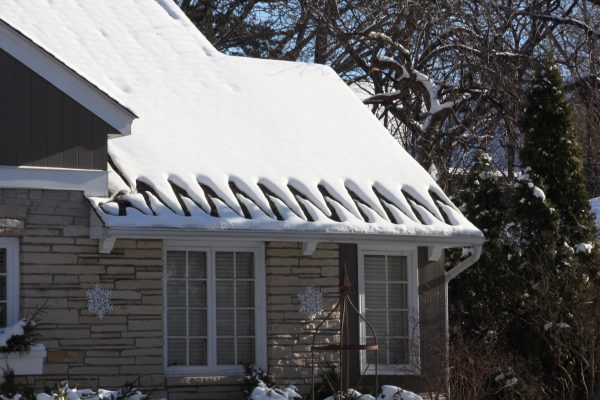

Heat tape installation project Edina Minnesota Ice Dam Company

We are the only company in the Twin Cities that is both a manufacturer of commercial grade self-regulating heat cable and an installer. Our product is ETL and UL Listed, comes with an industry leading 5 year warranty and is built to last. This is not your typical big-box retailer heat cable. Frankly, that stuff is a joke and you should NEVER allow anyone to install it on your roof. Our self-regulating heat tape runs on 6 watts per foot and, as the name suggests, demands more energy when the outdoor temperatures are cooler and less when it is warmer. Our products are sold all over the United States because people have come to recognize our company as an industry leader in the development and installation of the finest ice dam heat cable products in the world. Click here to visit our store. Or, simply go to Amazon. We sell a ton of it there as well under the brand name HeatTapePro.

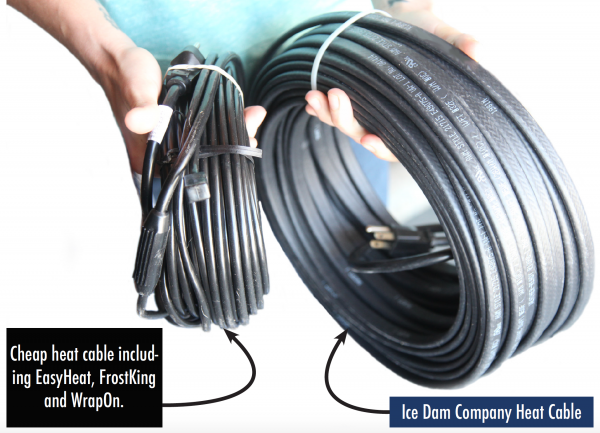

Ice Dam Company Heat Cable – Self-Regulating, Commercial Grade

We are often asked about heat cable and heat tape. Is it a good idea? Does it prevent ice dams? Are there better solutions. As with most topics, the answers are highly dependent on a number of variables. We are going to keep this post simple.



No other company in the Midwest does a higher volume of ice dam prevention work than The Ice Dam Company. Our association with Kuhl’s Contracting, a premier exteriors and insulation company in Minneapolis results in many jobs that combine home performance enhancements with top-notch roofing services. Likewise, The Ice Dam Company also installs a lot of heat cable here in our home town.

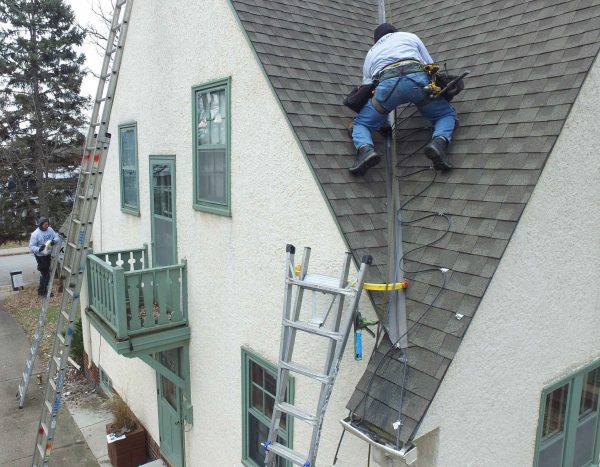

Minneapolis heat coil installation for ice dams


Heat Tape Pro Self-Regulating Heat Cable

Thursday, December 22nd, 2016

Roof deicing cable

HeatTapePro is a premium brand of commercial-grade, self-regulating heat cable. We are strategic partners with the Radiant Solutions Company, the direct manufacture of HeatTapePro and all related installation accessories.

Ice dam roof deicing cable installation information

HeatTapePro self-regulating heat cable

HeatTapePro self-regulating heat cables are designed to be used for a variety of roof de-icing, gutter de-icing and pipe freeze applications. Self-regulating heat cable automatically calls for more energy when ambient outdoor temperatures are lower and conversely, less energy when outdoor temperatures are higher. HeatTapePro is pre-terminated in our factory for your safety and convenience. No field modifications will be necessary to the cable to use it for the described purposes.

You can purchase HeatTapePro through our store here or at The Heat Cable Store, , Ebay or Amazon.


Minneapolis Ice Dam Removal Before and After

Wednesday, December 21st, 2016

It’s official. The 2016 ice dam season has begun. We had a number of crews out today removing ice dams from St. Louis Park, Minneapolis, Edina, Minnetonka and St. Paul. We have more ice dam steamers than anyone in the country and yet it always feels like a bit of a scramble the first day. Men, supplies and equipment all being organized and deployed from our headquarters in Hopkins. Our warehouse looked like a war zone today. Hoses, anti-freeze and kerosene containers, steamers, shovels, all scattered around as we assembled the trucks for duty. As hectic as operations are the first day of each season, our clients see none of it. I liken the whole thing to a duck moving across a pond. From above the duck glides seemingly effortlessly but under the water his legs are moving like crazy. After this many years in business, I know this is how most businesses happen.

Before and after of ice dam removal project in Minneapolis

Here’s something cool from today. Our guys are all professional roofers which means they understand exterior envelopes and construction assemblies. Today one of our guys found a massive install error on a low-pitch rolled asphalt roof in Minneapolis. The client had no idea. The original roof installer failed to use adhesive between the roofing plies! That’s a major no-no. They also had all of the penetrations negatively lapped (sequenced into the asphalt improperly). Good catch Paul!

The Ice Dam Company is in fact the only company in the country with the in-house chops to diagnose and address problems with insulation, ventilation, roofing, sheet metal and other exterior envelope components. We also install miles of self-regulating heat cable each year on homes where architectural solutions are not appropriate or feasible. Most ice dam removal guys just use their pressure washers to squirt ice off the roof and that’s the end of it. For us, ice dam removal projects are often just the beginning of a longterm relationship with our clients. The Ice Dam Company is a division of Kuhl’s Contracting, the third largest residential construction and remodeling company in Minnesota. There is a huge amount of cross-pollenization between the organizations. Each benefits from the resources and talents of the other. It’s fun to witness.

Ice dam removal project before and after photos from Minneapolis project 12-21-16


Ice Dams Are Happening!

Monday, December 19th, 2016

Ice dams have begun.

In my travels around Minneapolis today looking at ice dam prevention jobs, I noticed a number of homes that already exhibit signs of ice dams. To be more specific, I noticed water and ice coming down the siding and in through the eaves on a number of homes such as the one shown here. This represents a clear signal that water is backing up behind an accumulation of ice on the roof and going where it’s not supposed to go. Want more signs of ice dam issues, click here. With another snowstorm approaching on Christmas, I’m predicting that this might be another troublesome year for Minneapolis homeowners relative to ice dams.

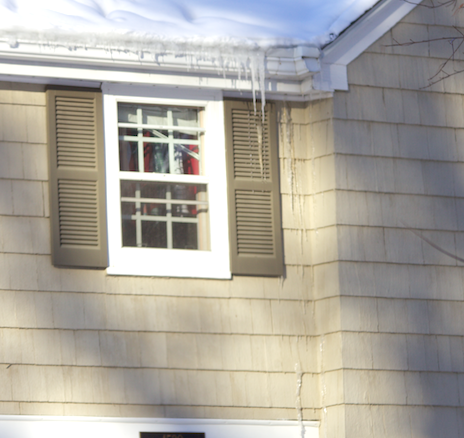

Ice dam removal Minneapolis

What can you do? Unfortunately, once ice dams form and begin to cause problems, the only answer is to have them professionally removed. We use true steamers, machines that superheat water to steam. How do you tell the difference between a high temperature pressure washer used by competitors and a steamer? It’s simple. Does the gun have a trigger or not? If it has a trigger, it is simply NOT a steamer. IDSAFE, a unique organization whose entire purpose is to educate property owners on ice dam steaming, can be found here. The Ice Dam Company is a proud member of IDSAFE. All of our machines have been verified to meet the standards of true ice dam steamers, unlike two of the largest ice dam removal companies in the Twin Cities. (You know who you are!).

Of course the better answer to ice dam removal in Minneapolis is ice dam prevention. We engage in more ice dam prevention work than anybody in the United States, employing both architectural solutions and non-architectural solutions which includes heat tape and heat cable, insulation, roofing, remodeling and general home performance inspections.

Our sister company, Kuhl’s Contracting, engages in the hundreds of attic insulation retrofits and reroofing projects every year in Minneapolis and surrounding communities to address the underlying causes of ice dams. Kuhl’s Contracting also installs heat cable and heat tape on commercial properties and residential properties all over Minnesota. We are proud to sell HeatTapePro, made by Radiant Solutions Company, a premium self-regulating commercial grade heat cable available on a number of online retailers including Amazon. HeatTapePro can also be purchased at The Heat Cable Store, an online direct-to-consumer website that sells a number of heat cable and heat tape products by different manufacturers. Of course, you may also buy HeatTapePro here, at The Ice Dam Company Store.

Click here to schedule an appointment with our ice dam removal or ice dam prevention teams.


Ice Dams in Gutters: A Myth in the Making

Wednesday, June 22nd, 2016

The Truth About Gutters and their Relationship with Ice Dams

In 2011, Ice Dam Company owner Steve Kuhl wrote a nationally published article about ice dams for the Journal of Light Construction. One of the topics that receieved the most attention was the notion that gutters have nothing to do with ice dams. Here is a deeper look at that assertion.

There is a great deal of confusion and misinformation about the relationship between gutters and ice dams. Many people are under the misconception that gutters cause ice dams or that gutters filled with ice can cause water to back up into homes. Not true. We repeat. Gutters have nothing to do with ice dam formation or severity. For this reason, buying systems that heat gutters in order to prevent ice dams is a total and complete waste of money.

We know that ice dams occure when:

  1. Escaped heat from the inside of the home warms the roof deck.
  2. Melting snow results in water that runs down to a cold, unheated area of the roof (frequently the eave, as shown below).
  3. That water freezes, forming ice. After many of these cycles, that ice piles up to form an ice dam.

Study the illustrations below. These are identical eave designs, one with gutters, the other without. The Area B in the diagrams below is referred to as the ‘cold edge’ of the eave because heat from the interior of the home doesn’t travel that far. Fact One: Whether or not a home has gutters, a cold edge will still exist and this is where ice dams form. Fact Two: leaks from ice dams occur in Area A, at the leading, top edge of the ice dam where water–with nowhere else to go–is forced up under the roofing material and into the home. Put another way, if the home in Figure 2 had bad leaks inside, those leaks would not be eliminated whatsoever if we took a chainsaw and cut off the gutters along the red dashed line (C). Moreover, if we heated the gutters using a fancy electrical system, the likelihood of ice dams and the subsequent leaking would NOT be affected. Spend money on heat cables for the lower edge of your roof, not on heating the gutters only. High quality heat cables can be quite effective in preventing ice dams.

Case Study 4

Figure 1: Ice Dam Without Gutters; Figure 2: Ice Dam With Gutters

None of this is to suggest that ice in gutters are harmless. We have seen many gutters damaged or destroyed by ice dams and that is a problem most homeowners would like to avoid. The point here is that, all else held equal, if a home is likely to get ice dams the addition or deletion of gutters will be of no consequence to the formation or severity of said ice dams. Likewise, for this reason, installing heated gutters or adding heating systems to existing gutters will have no affect whatsoever on the occurrence or severity of ice dams.
To read more Case Studies click here.


6 Ice Dam Warning Signs

Monday, April 25th, 2016

How to Know if You Have an Ice Dam Problem or Just Some Pretty Icicles

Case Study 2

Here are six things you can look out for when determining how severe your roof ice dam issues may be:

  1. Icicles forming on the edge of your roof (with or without gutters).
  2. Ice begins to build on top of the gutter or lower edge of roof. Remember: Ice dams as little as 1″ thick can cause big problems on certain roods. Don’t be fooled by small ice dams.
  3. Icicles forming behind the gutter, or worse, behind the facia.
  4. Ice begins coming through the soffits, normally through vents or through seams in the soffit. This is bad news. Next stop, your ceilings.
  5. Ice or water shows up on the siding or exterior wall surface. Ice can appear in the anywhere along the wall, even randomly in the middle.
  6. Ice or water shows up inside your home or around the window frame (interior or exterior). This is really bad news.

Call The Ice Dam Company at 952.935.9469 for help with your ice dams today.

To read more Case Studies click here.

Ice Dam Removal, Ice Dam Prevention

Removing Ice Dams in Minnesota: We Serve Many Areas in the Minneapolis Metro

The Ice Dam company based out of Hopkins, Minnesota, about 5 miles west of Minneapolis. We've done gutter ice removal, roof ice removal and ice dam removal all over the Twin Cities, on new houses and old ones.
